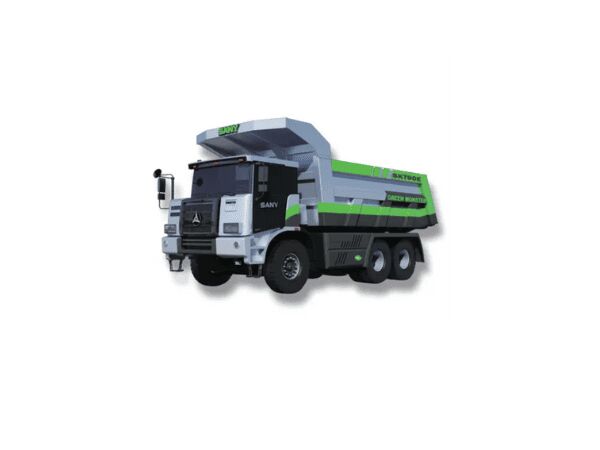

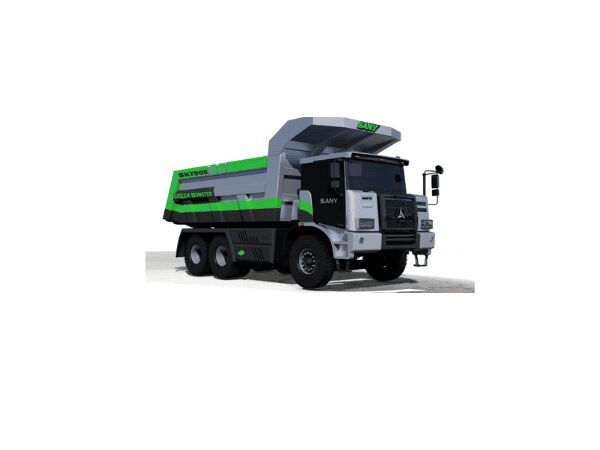

The SANY SKT90E Electric Off-Highway Mining Truck is a powerful and eco-friendly solution designed for large-scale mining operations. Built with advanced electric drive technology, it delivers high efficiency and lower operating costs compared to traditional diesel trucks. Its robust structure and reliable performance ensure safe and stable operation in tough mining environments. With zero exhaust emissions, it supports sustainable mining practices and reduces environmental impact. The SKT90E represents SANY’s commitment to innovation, productivity, and green mining solutions.
Features-

High-strength Frame: The newly designed low-stress and high-strength frame effectively prevents the fatigue breakage of the frame and reduces the overall stress level by 51% compared with competing products.
Hydro-Pneumatic Suspension: The hydro-pneumatic suspension technology is applied to replace the traditional leaf spring structure, remarkably improve the life and comfort of the machine, thoroughly solve the frequent breakage problem of front suspension leaf springs in the industry, and promote the attendance rate of the machine. The hydro-pneumatic suspension features excellent shock-absorbing and damping performance to remarkably improve the load application of the frame and prolong the life of the frame.
Oil And Gas Suspension: Front oil and gas suspension, buffer, and vibration reduction are significantly improved; greatly reducing the impact force of the frame, cab, and other heavy parts, reduce the occurrence of various faults, and extend the life of the vehicle; thoroughly solve the fracture problem of the front plate spring.
Full Hydraulic Steering and Emergency Steering: The vehicle steering makes it easier to solve the problem of heavy mechanical steering caused by heavy trucks in the industry; equipped with emergency steering, to solve the problem of steering failure after engine flameout or steering pump failure.
Intelligent Electrical System: (i). SANY intelligent control module with an electrical fault self-diagnosis system can troubleshoot some problems automatically.
(ii). 10 "central control screen equipped with reversing camera, Bluetooth connection, compatible with intelligent mine management system. The built-in GPS module can effectively monitor the vehicle operation.

Parameters-
Net Weight: 37T
Gearbox Type: Dual 3-shift AMT
Capacity (Struck/Heaped): 33/38m³
Size: 9145x3660x4395mm
Left/Right Hand Drive: Left/Right
Total Power: 740kW
Displacement: 0L
Maximum Torque: 2300NM
Max. Gradeability: 39%
Min. Turning Radius: 12500mm
Lubrication System: Optional automatic lubrication
Automatic/Manual: Automatic
Axle: 25+35+35(t)
Tyre: 16.00R25
Load Weight: 60T
