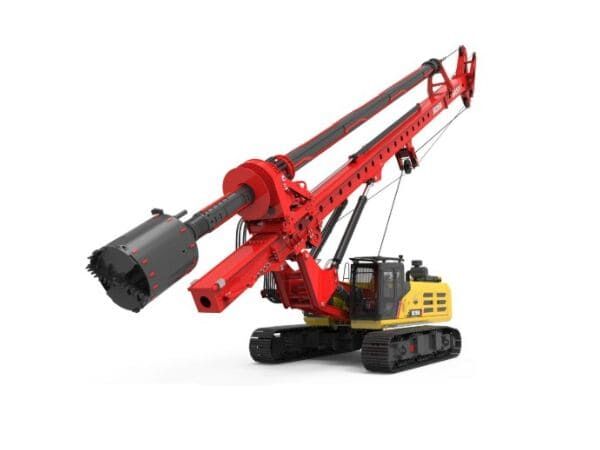

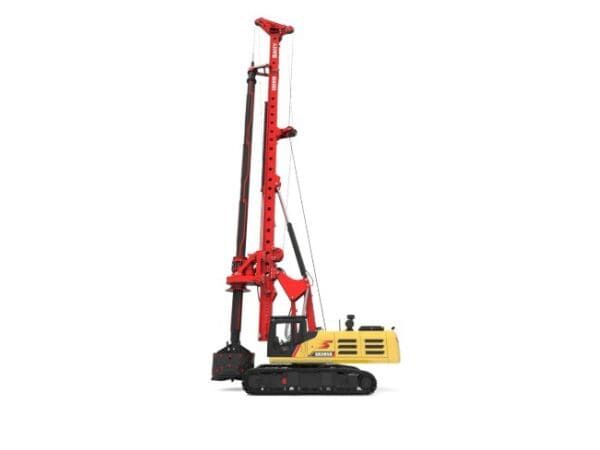

Buy SANY SR285R-C10 Rotary Drilling Rig

Posted by: bigbossmachines, 14 Sep, 2025

AED 3,328,000

Ad Detail

AD ID 4581444
Locality Dubai, Emirate
MakeSANY
ModelSR285R-C10
Year2025
Ad Type Offering
Posted by Company

Designed for demanding foundation projects, the SANY SR285R-C10 delivers unmatched drilling power and efficiency. Its robust rotary drive system and state-of-the-art hydraulics ensure superior penetration and smooth operation. Intelligent controls enhance accuracy, reducing operator effort and boosting safety. With low maintenance requirements and cost-saving features, this rig excels in deep foundation and piling applications.
Features-
Efficient and Flexible
Special Chassis
Economical and Energy-saving
High Reliability
Intelligent Upgrade

Parameters-
Base Engine: Isuzu 6WG1
Engine Power: 300/1800kW/rpm
Emission Regulation: China Stage Ⅲ
Rated Speed: 5~24rpm
Rated Output Torque: 285kN·m
Max. Pile Diameter: 2300mm
Max. Pile Depth: 94/61m
Crowd Force: 260kN
Stroke: 6000mm
Line Pull: 335kN
Overall Height: 25425mm
Operating Weight: 100T
Transport Width: 3490mm
Transport Height: 3690mm
Lifting Capacity: 330kN
Max. Line Speed: 72m/min
Rope Diameter: 36mm
