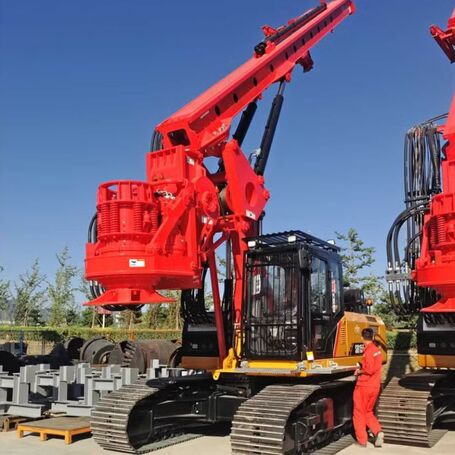

For Sale: SANY SR215-C10 (2025 Model) – High-Performance Rotary Drilling Rig

Posted by: valentina flores, 06 Oct, 2025

AED 2,500,000

Ad Detail

AD ID 4581983
Locality Ras Al Khaimah, Emirate
MakeSANY
ModelSR215-C10
Year2025
Ad Type Offering
Posted by Individual

Features
Efficient & Versatile:
Ideal for small-diameter, deep boreholes with fast hoisting, precise vertical alignment, and high construction efficiency.
Stable Chassis:
Telescopic wide-track chassis with large-diameter slewing bearing ensures excellent stability in deep drilling.
Fuel-Efficient:
Equipped with a powerful EFI engine and smart power control for quick response, lower fuel consumption, and energy savings.

Parameters
Main Chassis
Base Engine: Isuzu 6HK1
Engine Power: 212/2000kW/rpm
Emission Regulation: China Stage III
Rotary Drive
Rated Speed: 5~30rpm
Rated Output Torque: 220kN·m
Pile
Max. Pile Diameter: 1800mm
Max. Pile Depth: 64/51m
Crowd System
Crowd Force: 180kN
Stroke: 4200mm
Line Pull: 190kN
Overall Machine
Overall Height: 21040mm
Operating Weight: 63T
Transport Width: 3510mm
Transport Height: 3560mm
Main Winch
Lifting Capacity: 220kN
Max. Line Speed: 75m/min
Rope Diameter: 28mm

Price: AED 2500000
Request for quote: +971525384269
